Peak windows

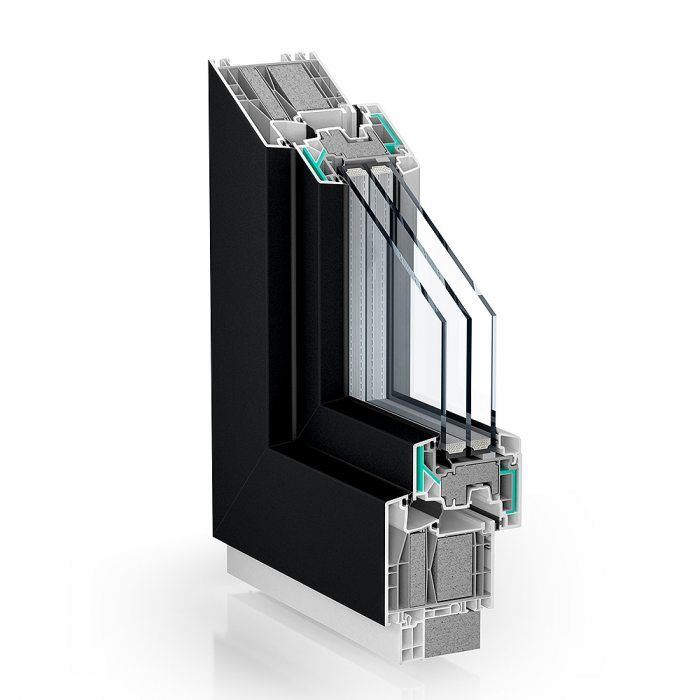

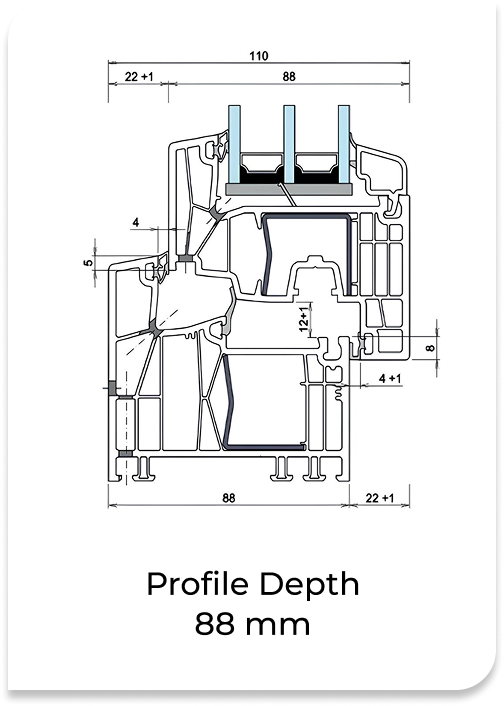

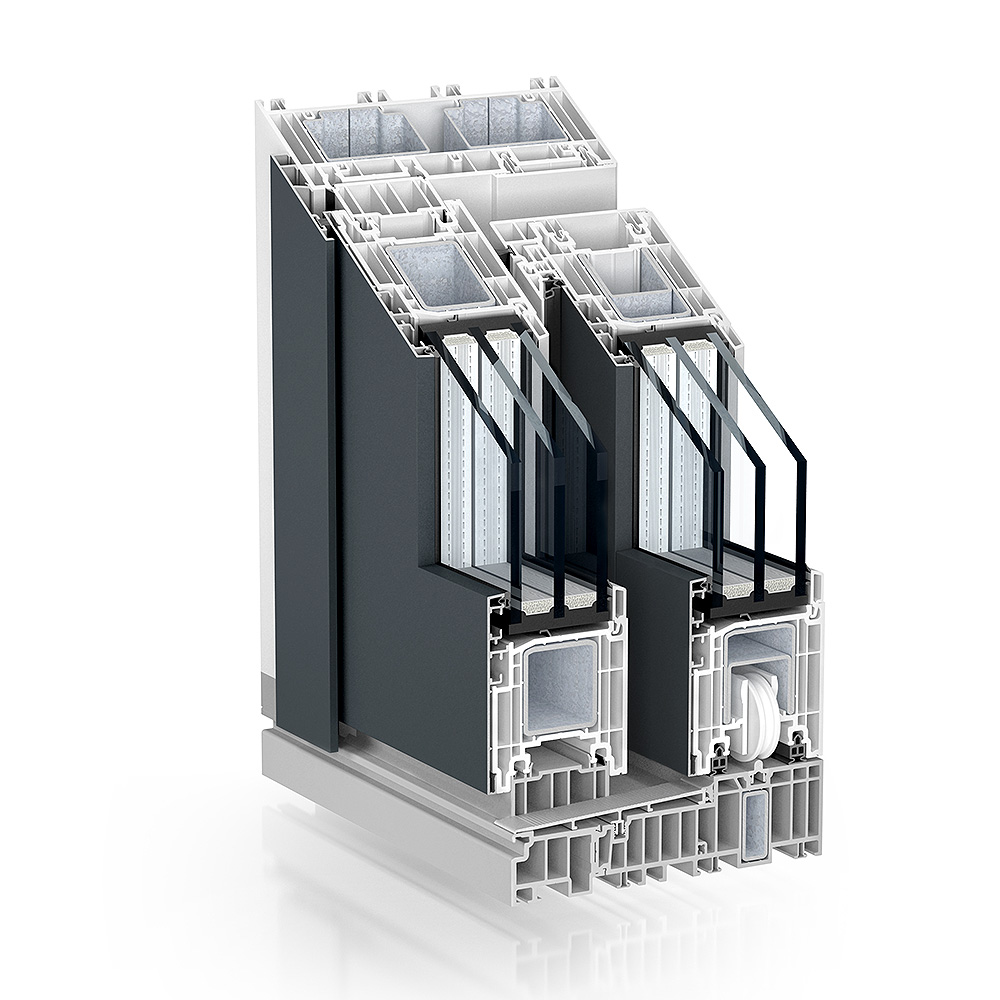

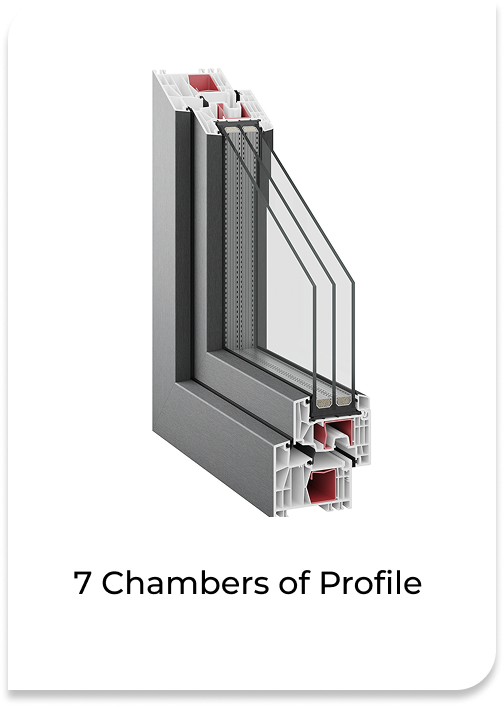

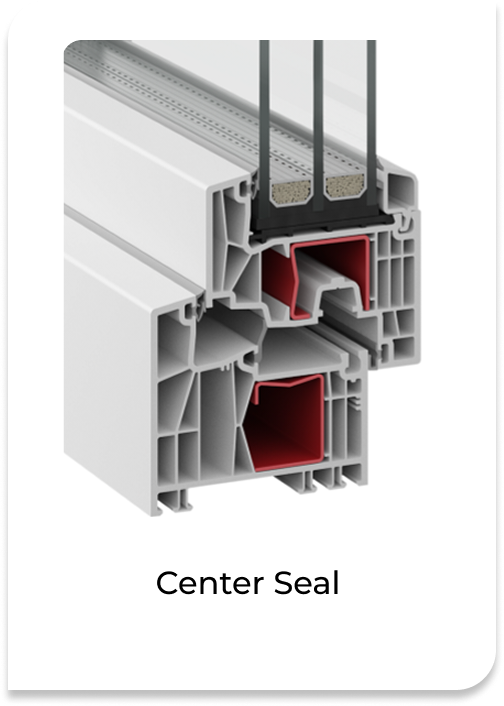

Peak windows is windows designed for passive house construction. It is a 7-chamber system with a 88mm profile depth and a center sealing system, known for its excellent thermal insulation properties. It achieves a Uf value at the passive house level and can accommodate triple glazing for enhanced energy efficiency.
Peak 88 Series
Discover unmatched quality, aesthetic appeal, and energy efficiency with our custom windows, crafted and installed just for you.
Performance

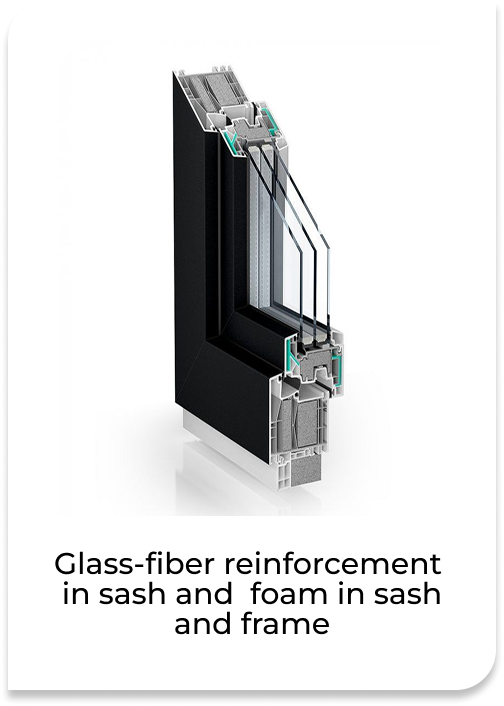

The glass-fiber reinforcement, which is firmly integrated into the profile during the extrusion process, ensures stability in the sash. This means that steel can be dispensed with, which improves the thermal insulation value enormously

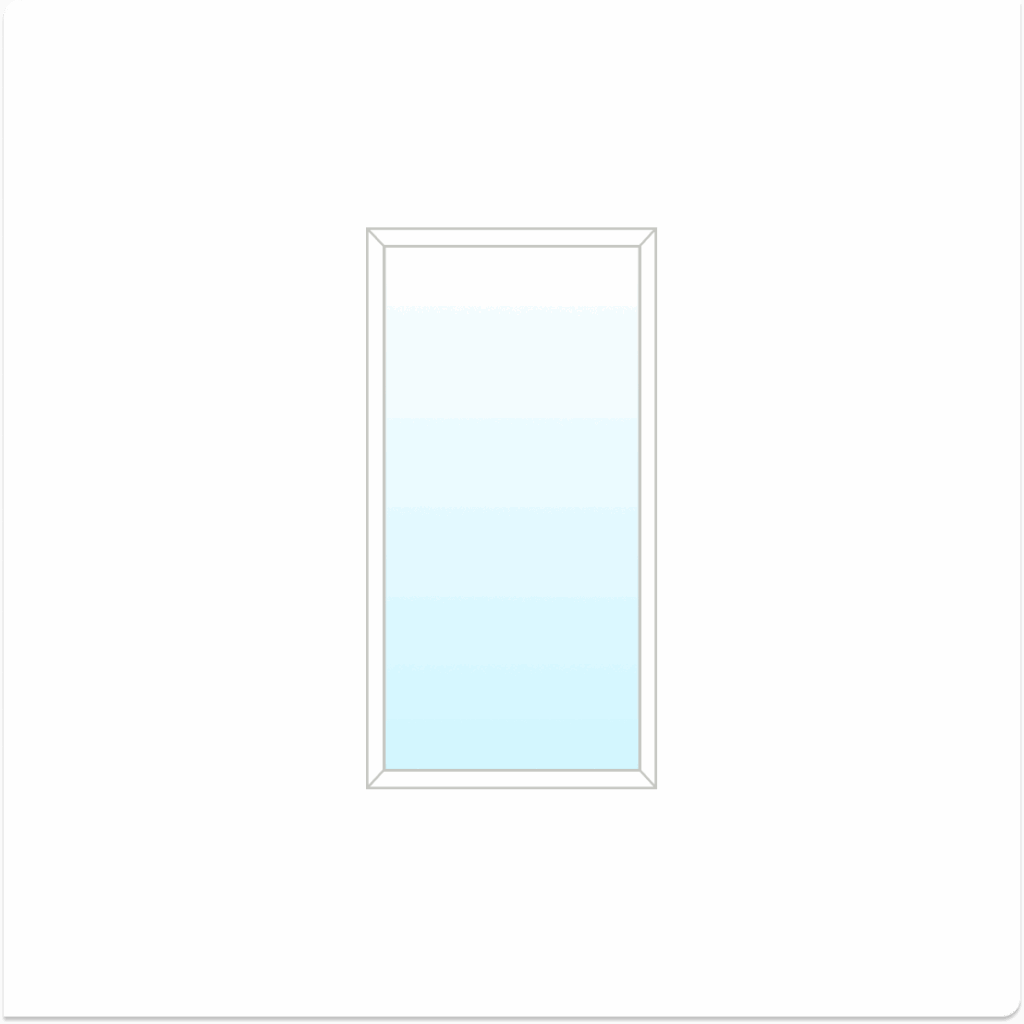

Fixed
Dimensions
Up to 14 ft x 14 ft
U Factor
0.12-0.26
SHGC
0.14-0.46
Sound
OITC Up to 40 STC Up to 47
Design Pressure
75
Operable
Dimensions
Up to
- 8 ft x 3 ft
- 5 ft x 5 ft
- 6.5 ft x 4 ft
U Factor
0.12-0.25
SHGC
0.12-0.40
Sound
OITC Up to 40 STC Up to 47
Design Pressure
65
Performance
The glass-fiber reinforcement, which is firmly integrated into the profile during the extrusion process, ensures stability in the sash. This means that steel can be dispensed with, which improves the thermal insulation value enormously
Fixed
Dimensions
Up to 14 ft x 14 ft
U Factor
0.12-0.26
SHGC
0.14-0.46
Sound
OITC Up to 40 STC Up to 47
Design Pressure
75
Operable
Dimensions
Up to
- 8 ft x 3ft
- 5 ft x 5 ft
- 6.5 ft x 4 ft
U Factor
0.12-0.25
SHGC
0.12-0.40
Sound
OITC Up to 40 STC Up to 47
Design Pressure
65
Product Details
Color Options

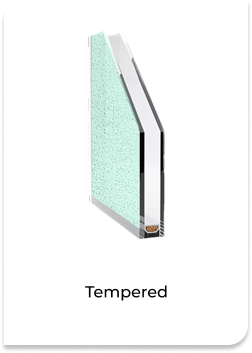

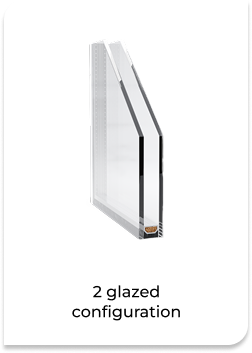

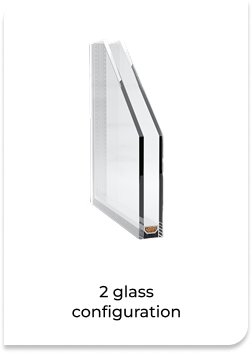

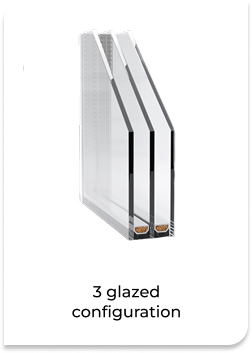

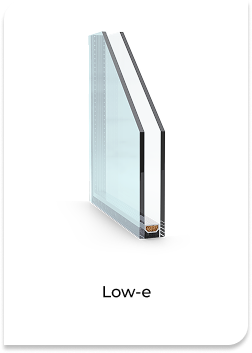

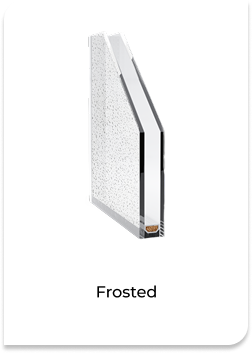

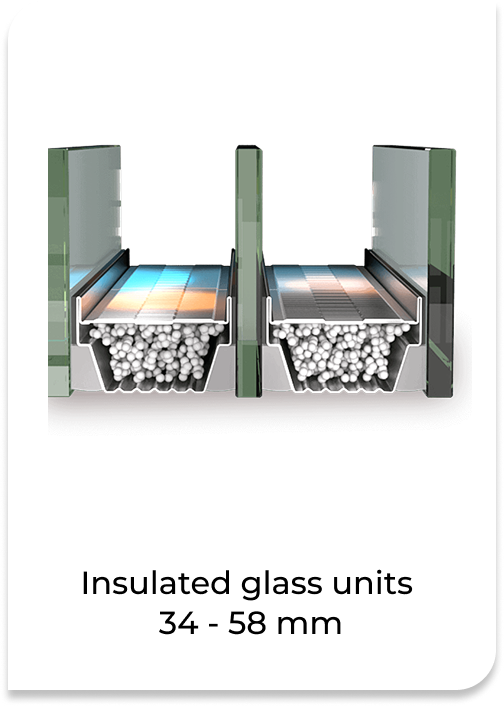

Glazing Options

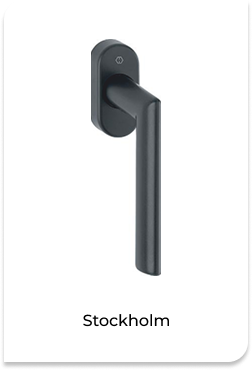

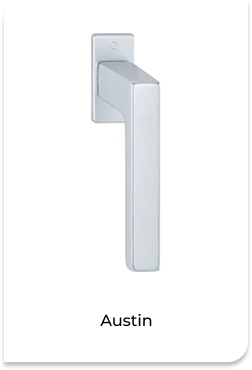

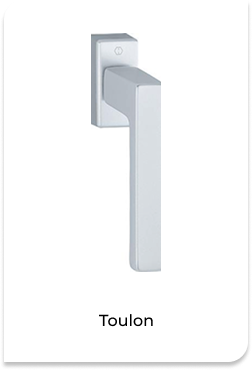

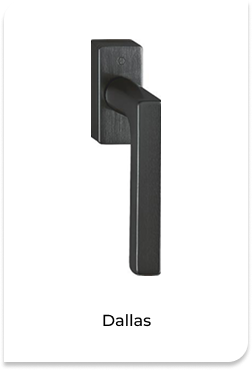

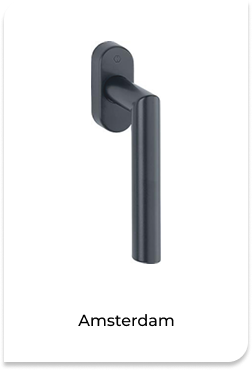

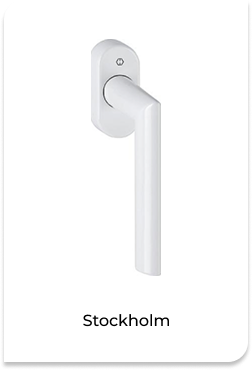

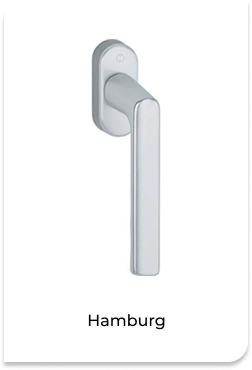

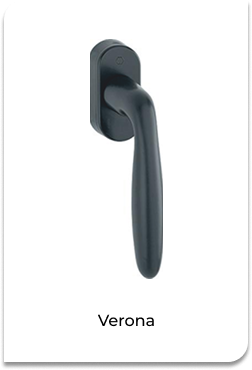

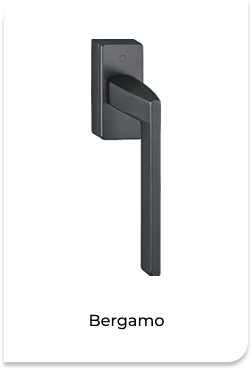

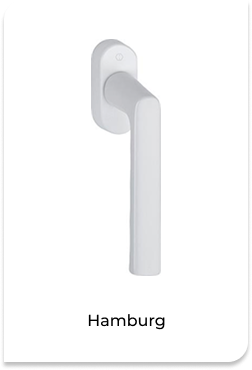

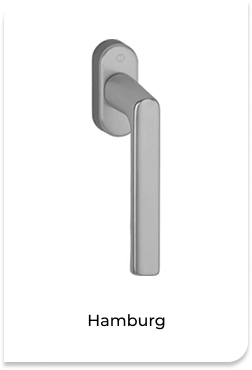

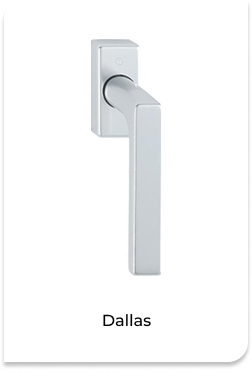

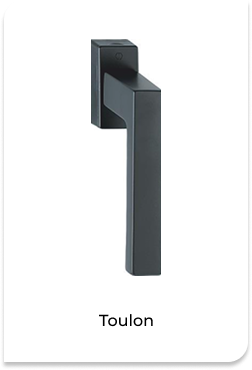

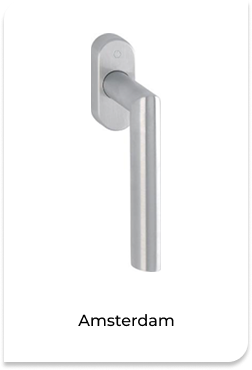

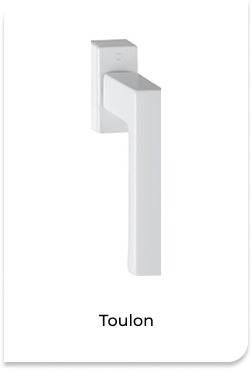

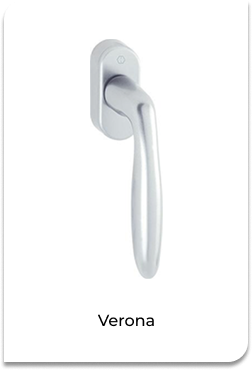

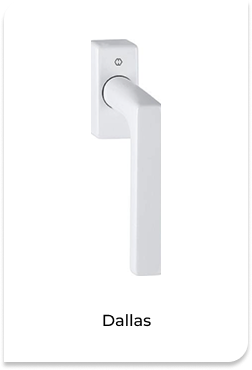

Handle Options

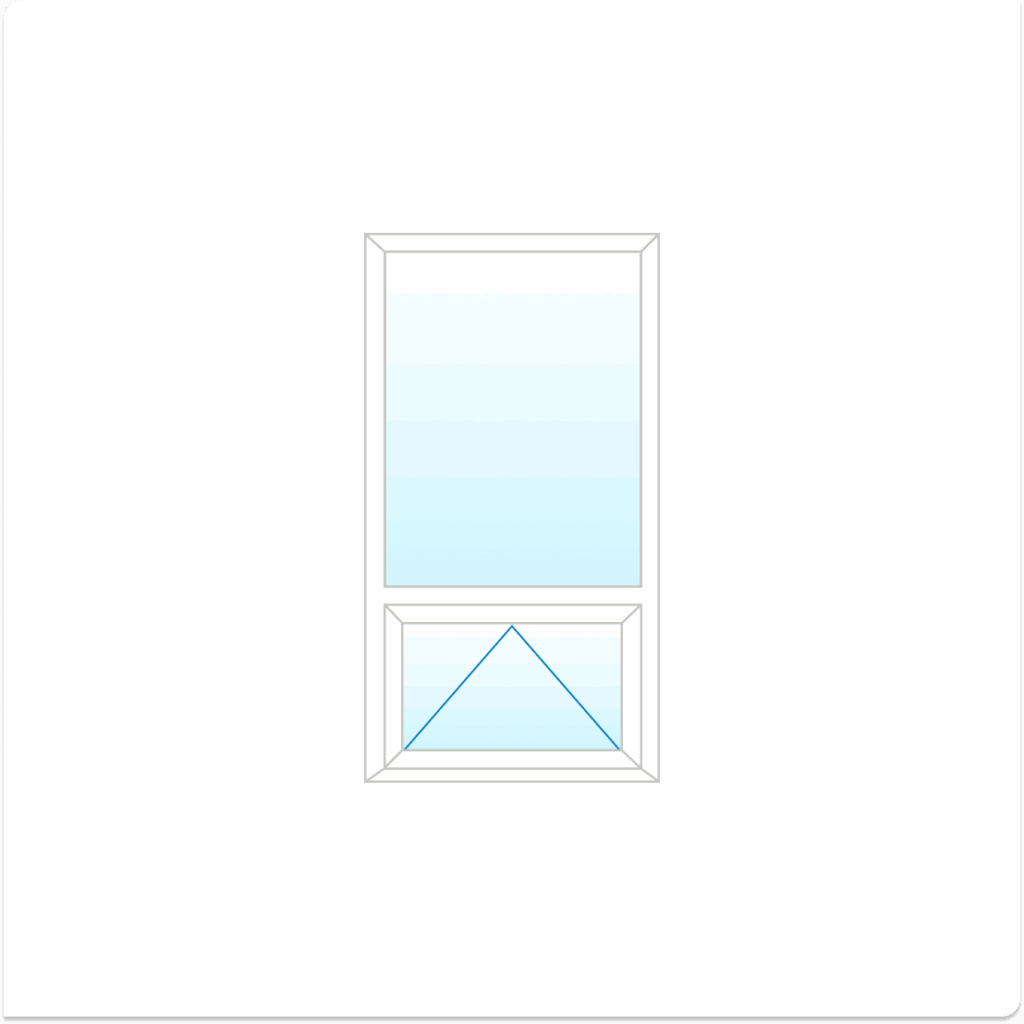

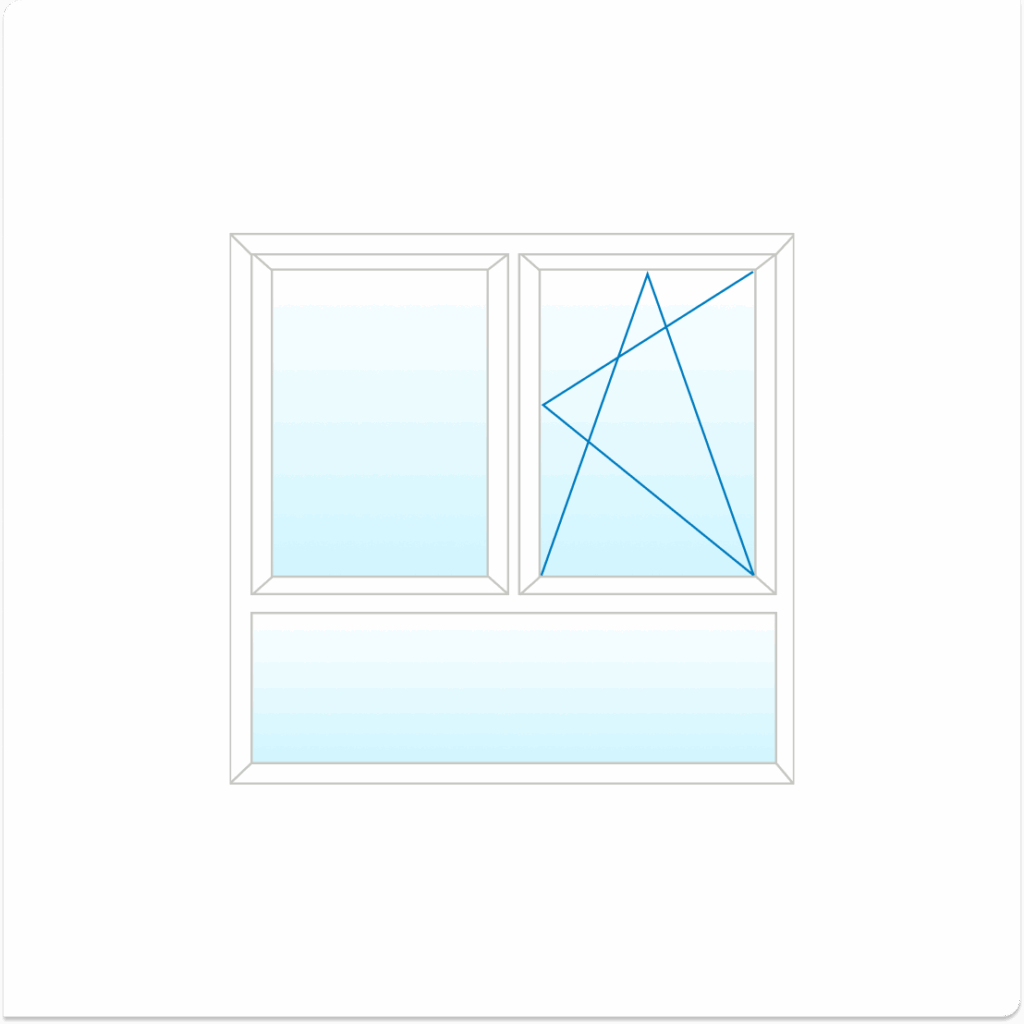

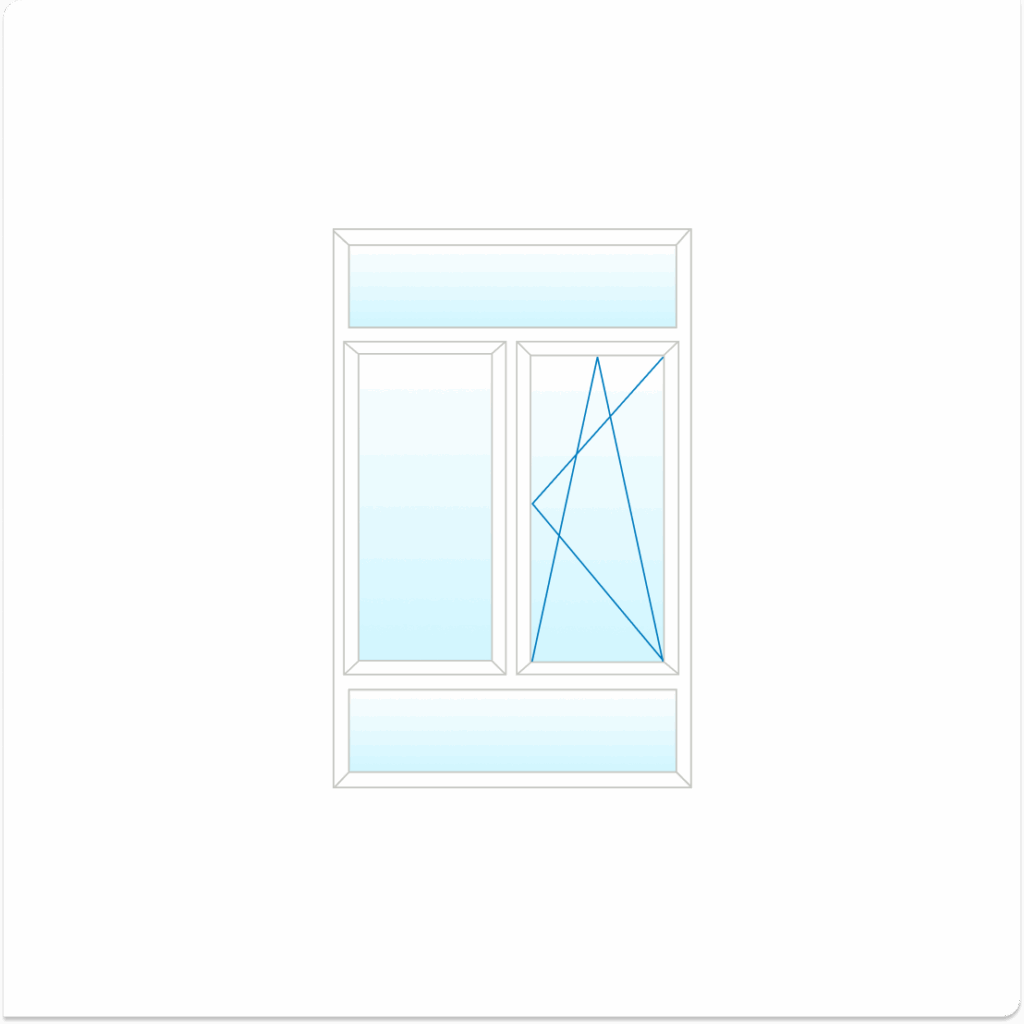

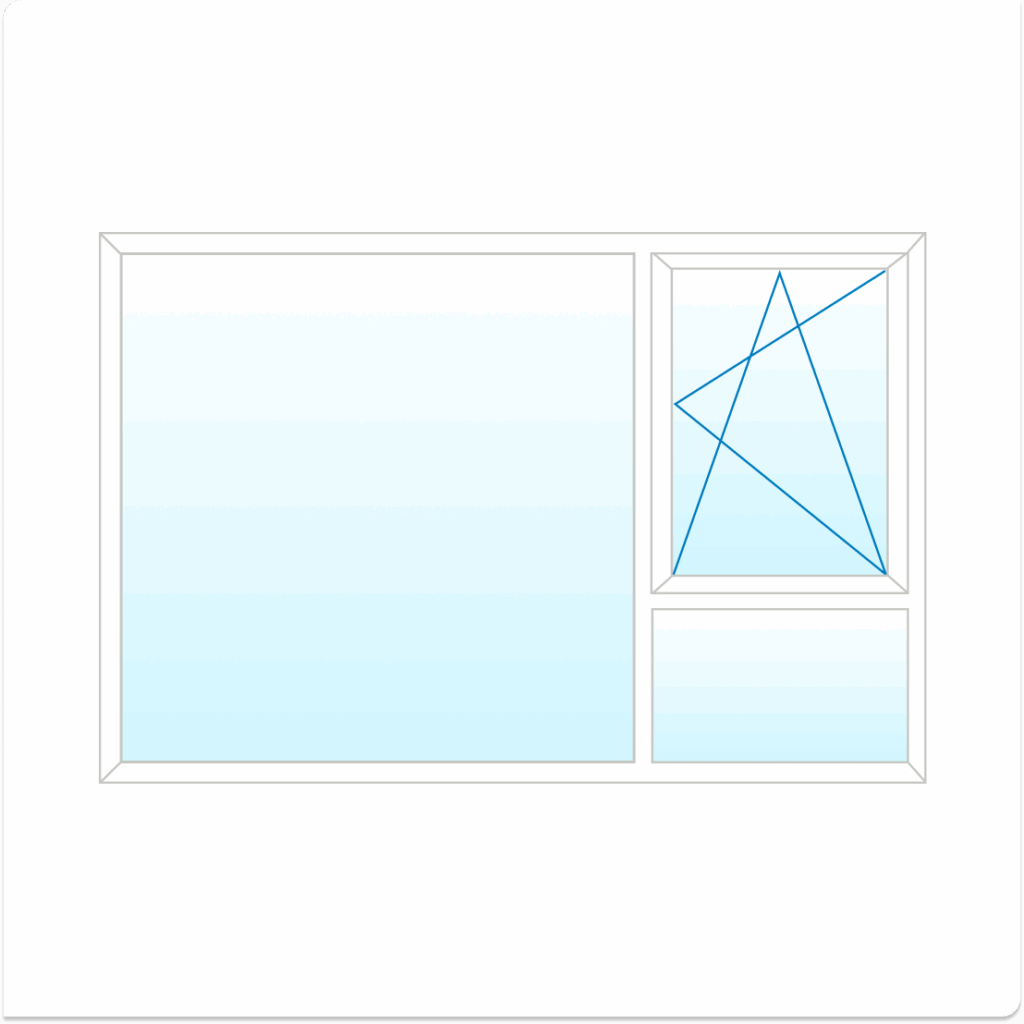

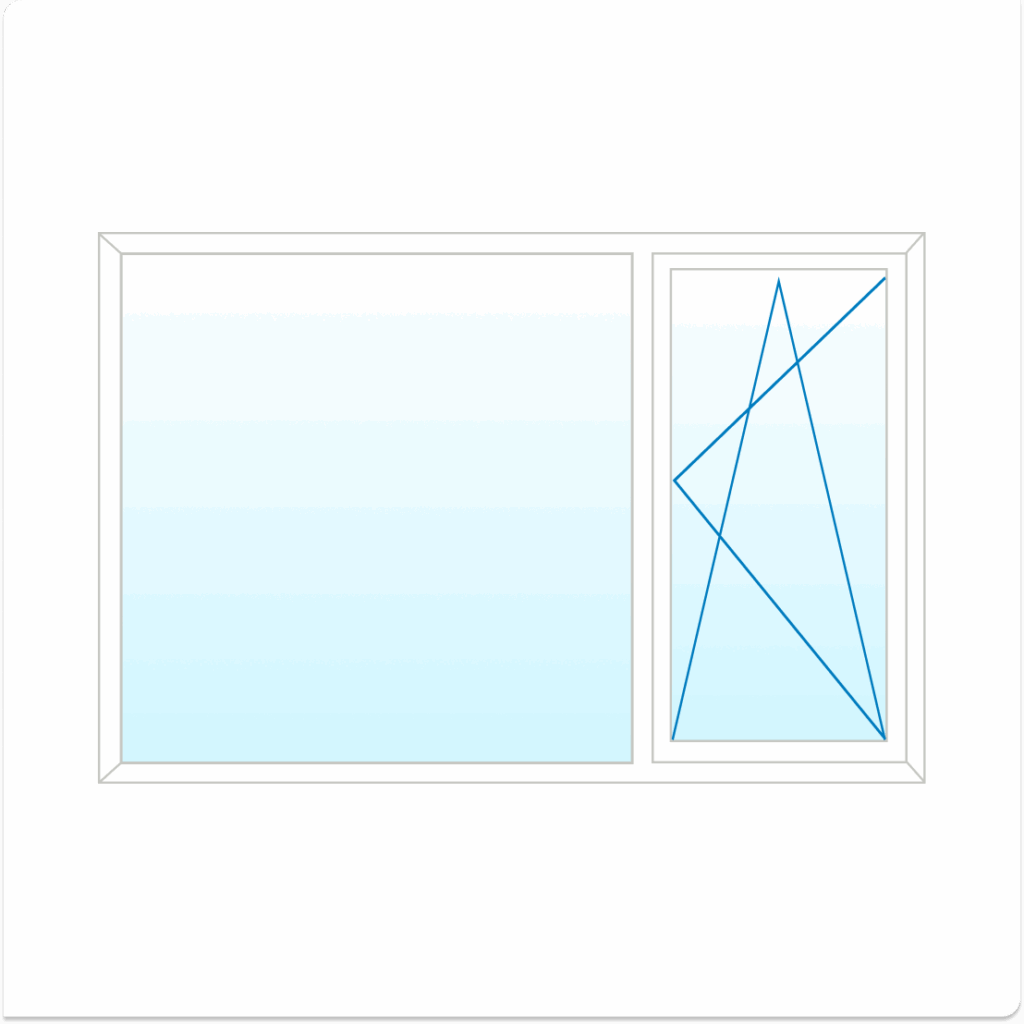

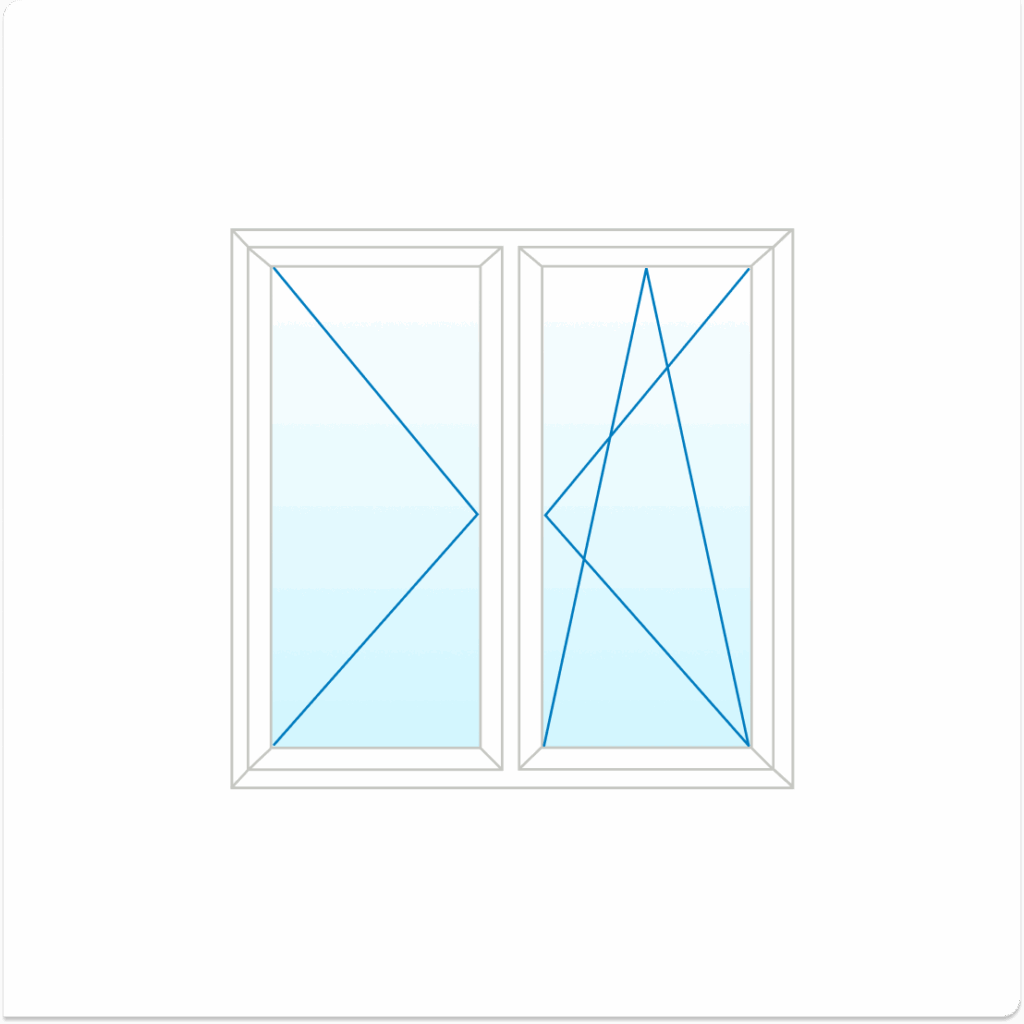

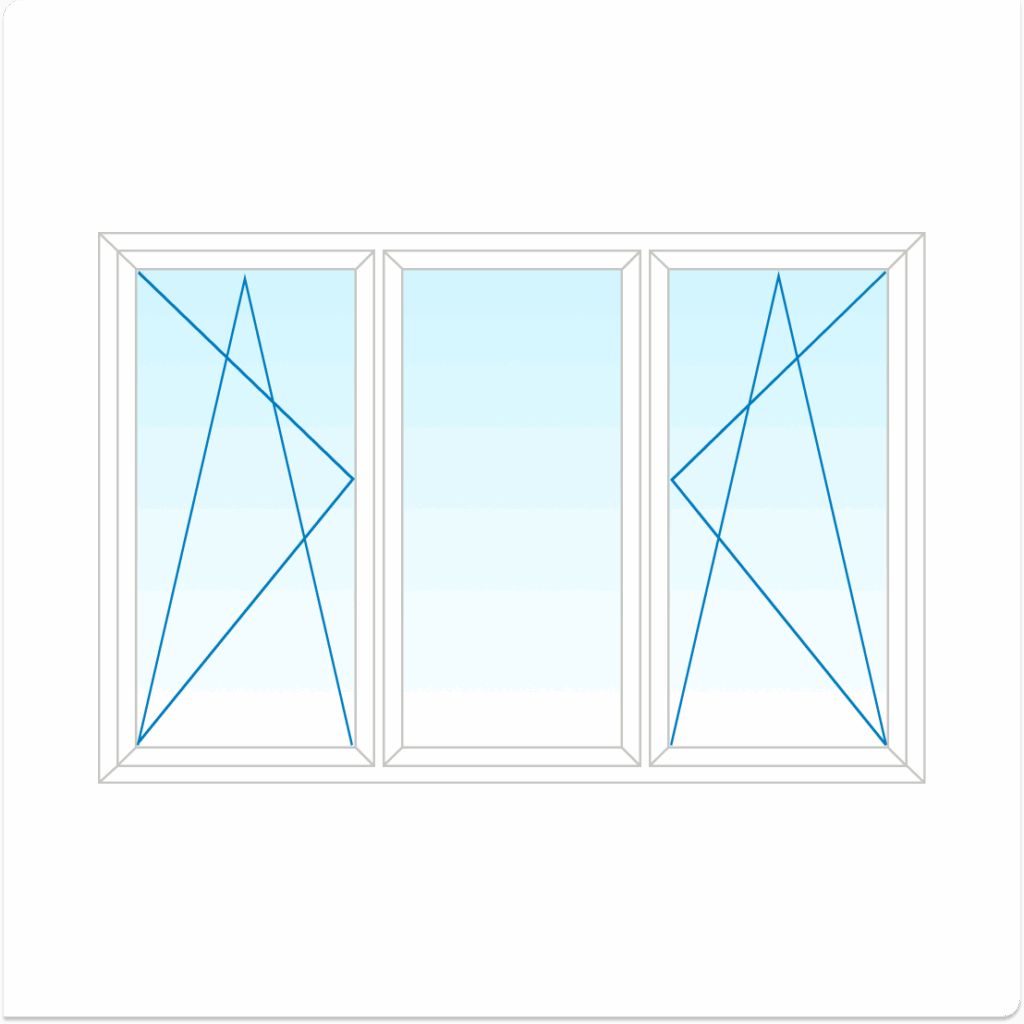

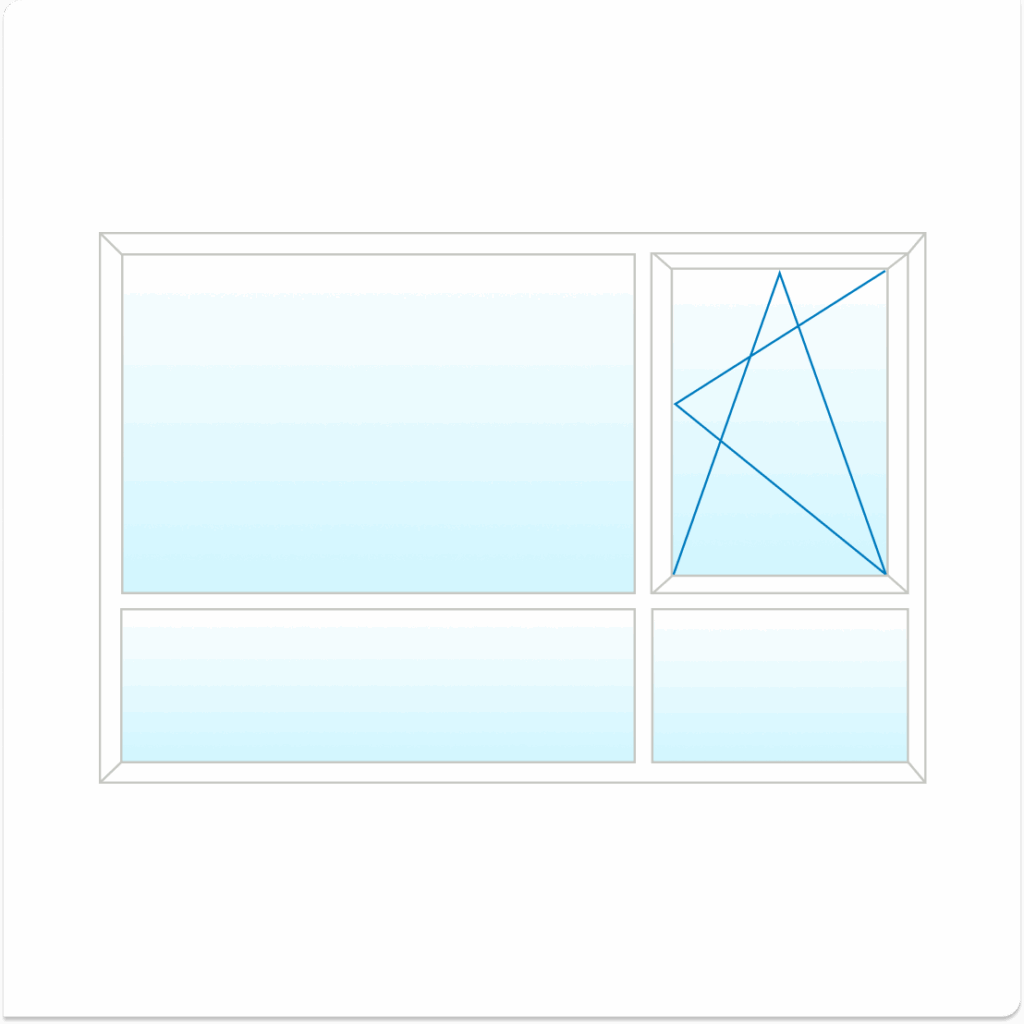

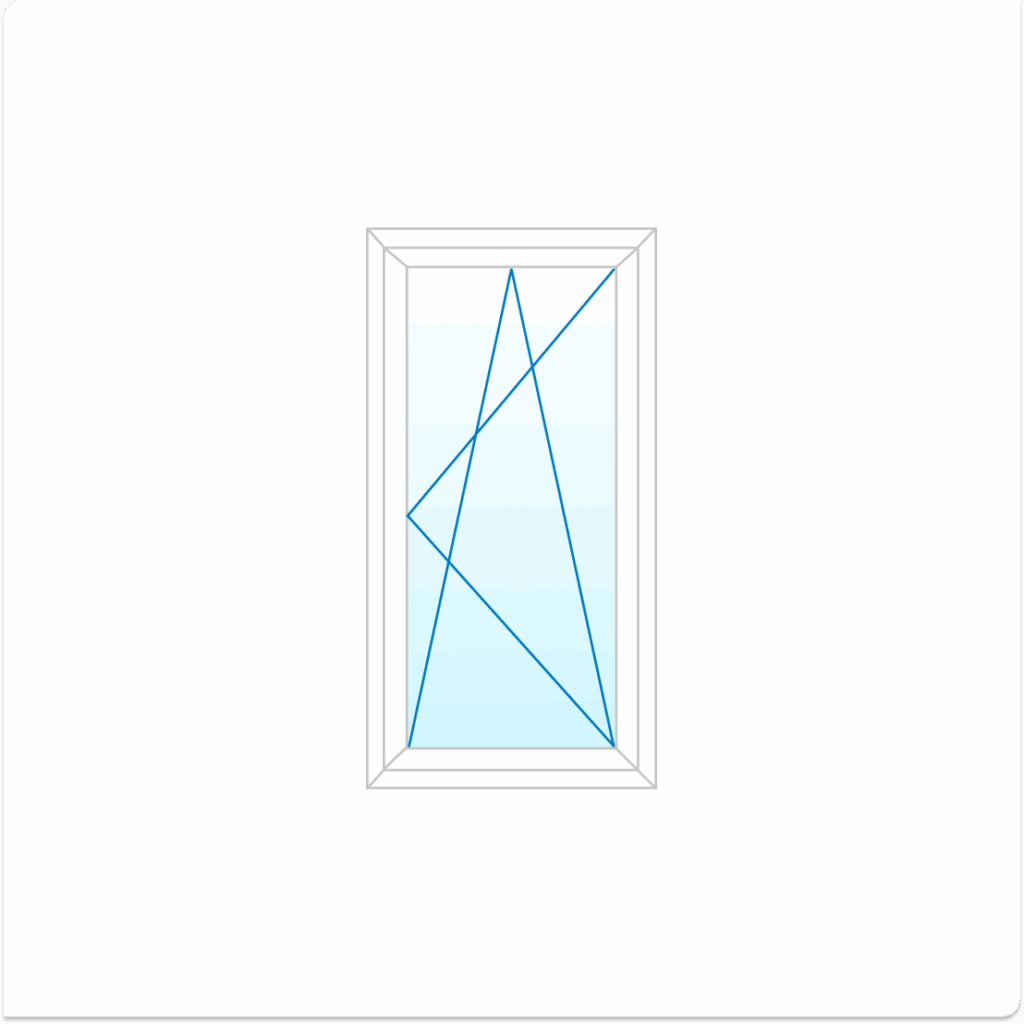

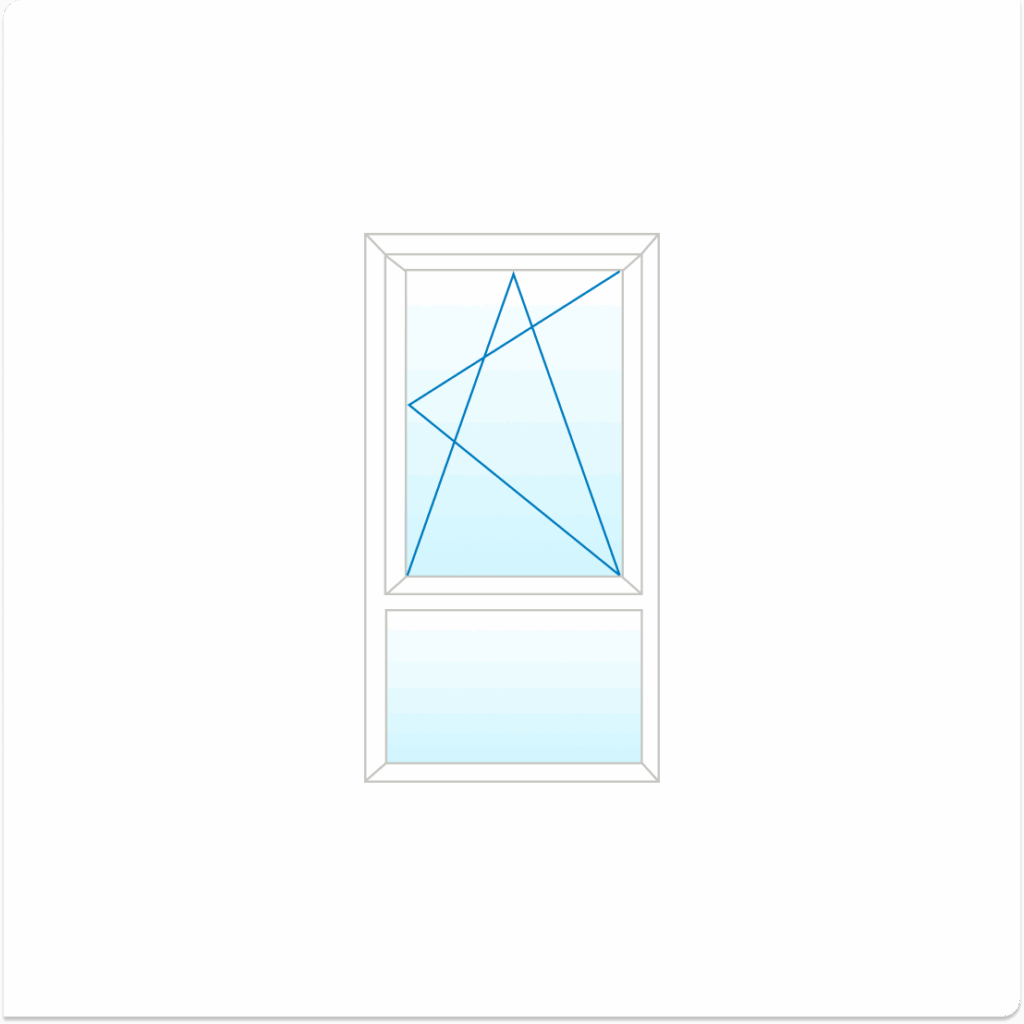

Configurations

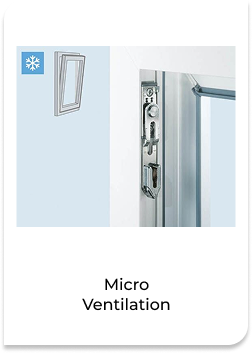

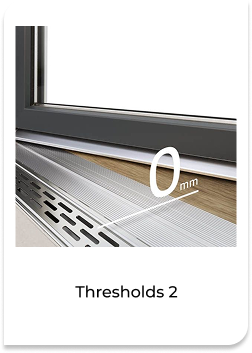

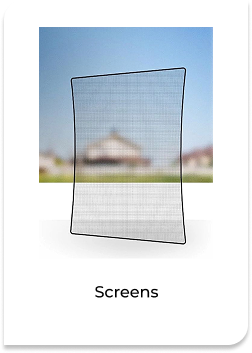

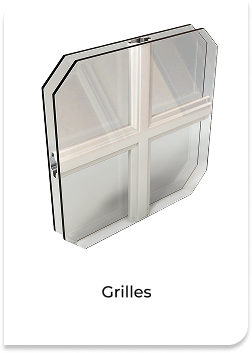

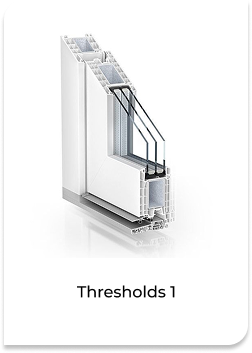

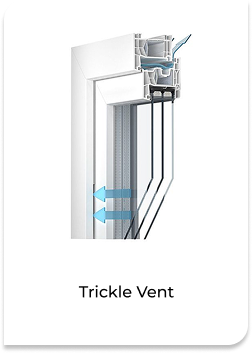

Accessories
Color Options

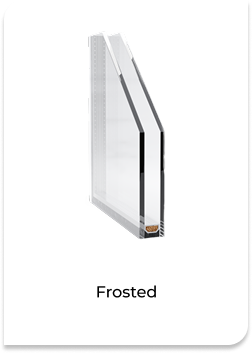

Glazing Options

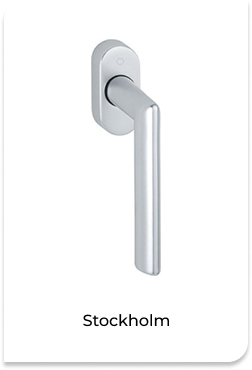

Handle Options
Sustainability of Tilt and Turn Windows
Tilt and turn windows are eco-friendly, featuring recyclable materials and energy-efficient production. Their durability reduces waste, making them ideal for green building projects while lowering the carbon footprint.
Eco-Friendly Materials
- Recyclable uPVC Frames: 100% recyclable, reusable up to 10 times.
- Low Environmental Impact: Less landfill waste, energy-efficient production.
Long Lifespan
- Lasts 30+ years with minimal maintenance.
- Resistant to warping, rotting, and corrosion, reducing replacements.
Sustainable Certifications
- LEED & BREEAM Compatible – Green building standards.
Easy Maintenance & Cleaning

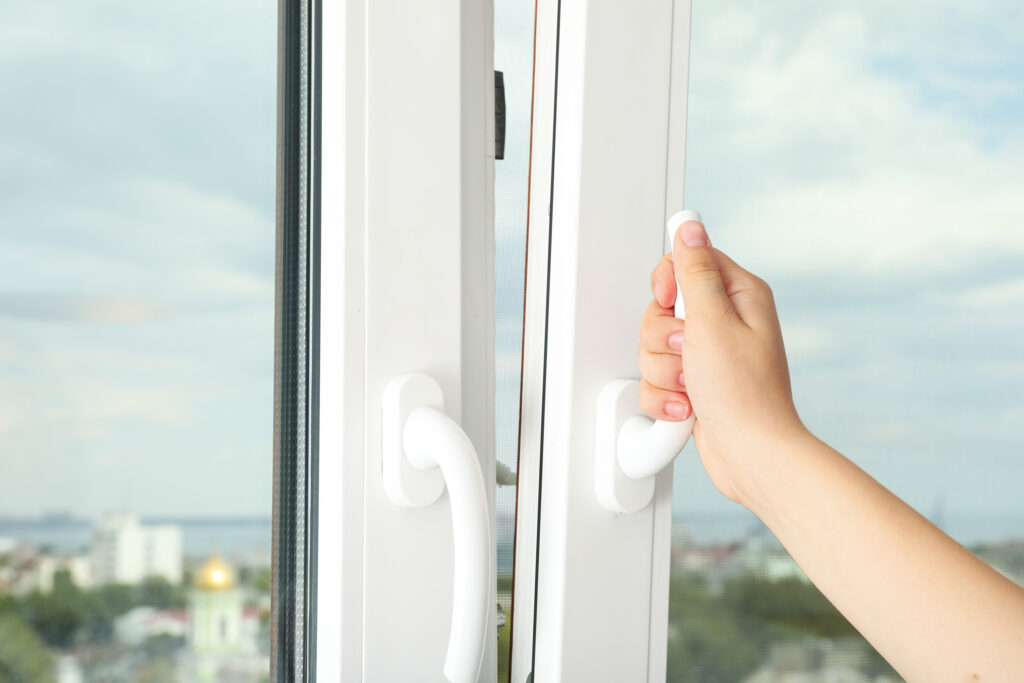

Tilt and turn windows are designed for effortless upkeep and durability. Their inward-opening function allows full access to both interior and exterior glass, making cleaning simple—especially for upper-story windows. This design eliminates the need for ladders or exterior access while enabling thorough cleaning of the frame, hinges, and seals.
Inward Opening Design: Provides full access to both interior and exterior glass.
Ideal for Upper Floors: No need for ladders or exterior access.
Low Maintenance: Requires minimal effort to keep clean and durable.
Thorough Cleaning: Easily access frames, hinges, and seals.
Security & Multi-Point Hardware
Tilt and turn windows with multi-point hardware offer top-tier security, making them an excellent choice for both residential and commercial applications.
What is Multi-Point Hardware?
Multi-point hardware is an advanced locking system that secures a window at multiple points along the frame. Unlike traditional windows with one or two locks, tilt and turn windows use multiple locking points for enhanced security and durability.
Key Security Components
- Espagnolette Locking System: Moves bolts into the frame for secure locking.
- Mushroom Head Locking Points: Bolts engage reinforced striker plates for better security.

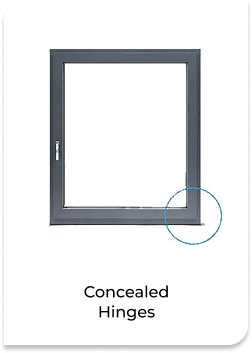

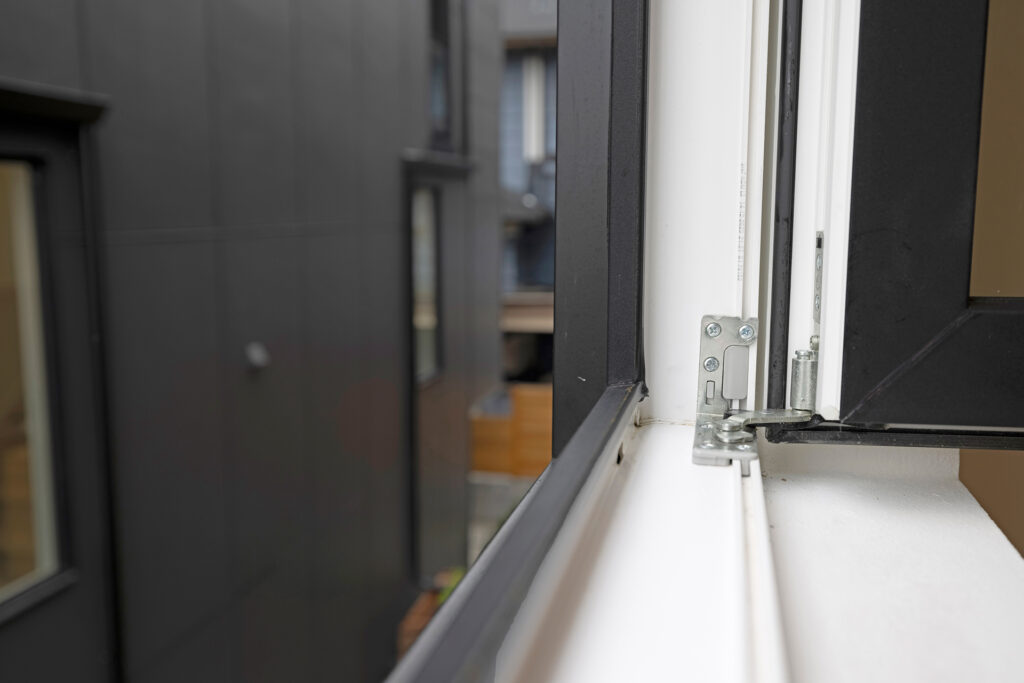

- Reinforced Hinges: Heavy-duty hinges resist tampering.

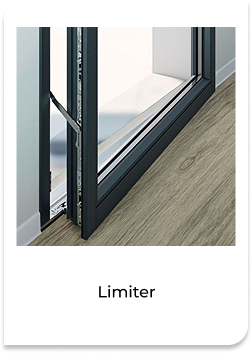

- Tilt Restrictors: Prevent over-tilting for added stability.
Benefits of Multi-Point Hardware
- Superior Security: Multiple locks resist forced entry, with optional key-locking handles.
- Durability: Even pressure distribution prevents warping, ensuring long-term reliability.
Unique Benefits of Tilt & Turn Windows
Tilt & turn windows offer superior energy efficiency, advanced thermal insulation, outstanding noise reduction, and eco-friendly benefits, making them a smart choice for sustainable and comfortable living.
Multi-chambered uPVC profiles trap air, reducing heat transfer resulting in a warmer and more comfortable home
Handles can be customized in a variety of styles and colors to fit your home
No painting or sealing required; simple to clean, easy to maintain improving longevity and indoor comfort
Weather resistant gaskets create a hermetic seal when closed, preventing drafts, air leaks, and heat loss
Triple glazing with advanced seals provide exceptional thermal insulation, reducing energy costs
Enjoy a quieter home, better sleep, and improved focus
Recyclable material provide credits toward green building initiatives like Energy Star, Green Build,Leed, and Passive House

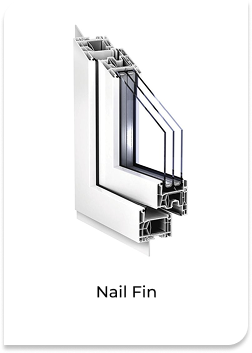

Available with and without a nailing fin makes it ideal for replacement and new construction
Lowers HVAC costs by reducing strain on your heating and cooling system and resulting in a 30% reduction in heating and cooling costs
Lower carbon emissions while keeping your home comfortable year round
Internal steel reinforcement improves stability, prevents warping, and allows adaptability to various architectural styles
